ЕДП (ЭДП)

The ЕДП (ЭДП) electric detonator is designed for detonating explosives by means of electric current. It converts an electrical impulse into heat (via a bridgewire), causing ignition of the primary composition and subsequent detonation. It provides remote, precise, and controlled initiation of the charge.

It consists of a No. 8-A detonator cap, in the open end of which an electric igniter with a platinum-iridium bridgewire is secured by crimping using a plastic compound plug. The wires with plastic insulation are 1 m long.

Technical and Tactical Characteristics of ЕДП (ЭДП)

Electrical resistance
0.9-1.5 ohms
Calculated resistance in heated state
2.5 ohms
Sustained ignition current
0.4 A (with alternating current)
Minimum direct current for detonating one detonator
0.5 A
Minimum alternating current for detonating one detonator
1 A
Guaranteed direct current for detonating series-connected detonators
1 A
Guaranteed alternating current for detonating series-connected detonators
1.5 A
Safe current
0.18 A
Electric detonators: a — ЕДП; b — ЕДП-r; c — old-type ЕДП; d — UEDP training electric detonator; 1 — wires; 2 — bridgewire; 3 — ignition composition; 4 — No. 8-A detonator cap; 5 — plastic compound plug; 6 — mastic plug; 7 — bushing; 8 — casing; 9 — white stripe (band).
Electric detonators: a — ЕДП; b — ЕДП-r; c — old-type ЕДП; d — UEDP training electric detonator; 1 — wires; 2 — bridgewire; 3 — ignition composition; 4 — No. 8-A detonator cap; 5 — plastic compound plug; 6 — mastic plug; 7 — bushing; 8 — casing; 9 — white stripe (band).
Electric detonators: a — ЕДП; b — ЕДП-r; c — old-type ЕДП; d — UEDP training electric detonator; 1 — wires; 2 — bridgewire; 3 — ignition composition; 4 — No. 8-A detonator cap; 5 — plastic compound plug; 6 — mastic plug; 7 — bushing; 8 — casing; 9 — white stripe (band).
ЕДП (ЭДП) electric detonator
ЕДП (ЭДП) electric detonator
ЕДП (ЭДП) electric detonator

Old-type electric detonators have a mastic plug and wires with rubber insulation.

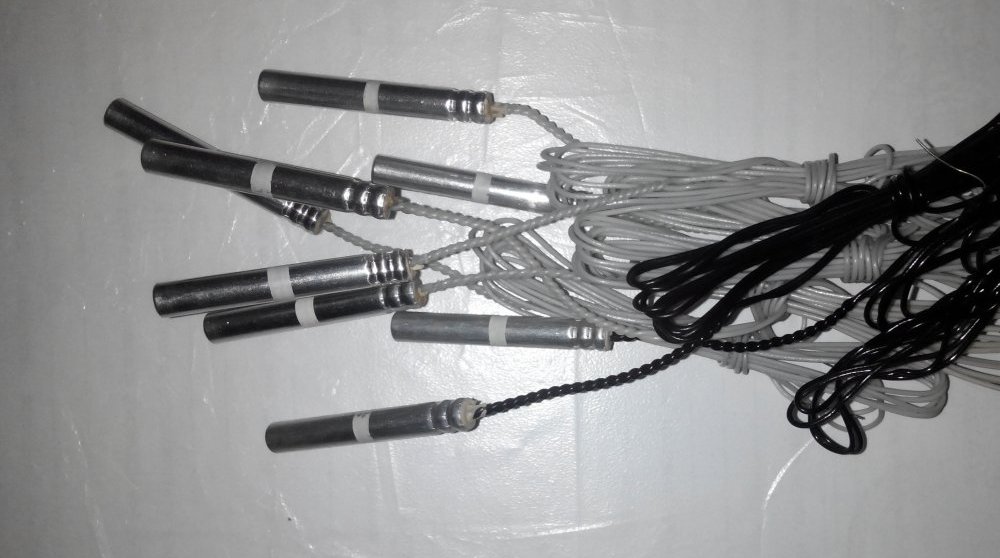

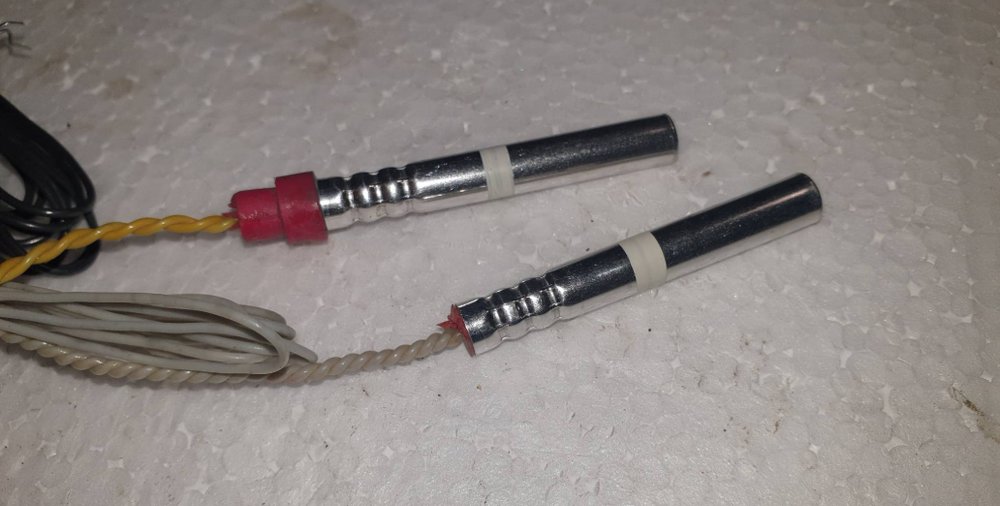

The UEDP training electric detonator differs from the ЕДП electric detonator in that it has an unloaded No. 8-A detonator cap casing, on which a white stripe 3–5 mm wide is applied, and there is no drop of ignition composition on the bridgewire of the electric igniter.

UEDP training electric detonators
UEDP training electric detonators
UEDP training electric detonators
UEDP training electric detonators
UEDP training electric detonators
